Straight Shank Collet
Straight Collet
Product Description:
Type: Collet
Name: Straight Collet
Material:65Mn
Hardness:HRC44-48
Accuracy:0.005mm,0.008mm,0.015mm
Usage: CNC Machine Center
- Product Introduction

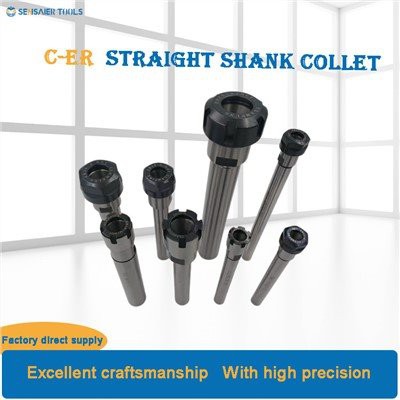

SC Collet Straight Shank Collet
Product Description:
Type: Collet
Name: Straight Collet
Material:65Mn
Hardness: HRC44-48
Accuracy:0.005mm,0.008mm,0.015mm
Usage: CNC Machine Center
Model No. | D | d/mm | L |
C16 | 16 | 4-12 | 45 |
C20 | 20 | 4-16 | 50 |
C22 | 22 | 4-16 | 55 |
C25 | 25 | 4-20 | 60 |
C32 | 32 | 4-25 | 65 |
C42 | 42 | 6-32 | 80 |
Our Straight Shank Collet Advantage:
1. Widely used in milling, boring, drilling, tapping, and other operations, suitable for various milling machines, CNC, engraving equipment
2. Super strong clamping force, enhanced holding force, good elasticity, durable and stable
without loosening, ensuring high precision
3.65Mn alloy spring steel, high elasticity, strong rigidity, stable cutting, greatly improving the service
life
4. Fine grinding inside and outside, longer service life
5. The chamfering design of the inner hole, the appearance step setting of the collet chuck,
and the installation, and removal of the tool are more reasonable and convenient
6. Martensitic structure strengthens heat treatment to effectively maintain precision and
avoid deformation and bursting
