High Accuracy Spring Collets

Product Introduction

In the current production process of some machine tools, for some complex workpieces, it is necessary to tighten them and fix them in the given position before they can be processed well. At this time, High Accuracy Spring Collets come into play. At present, our products have many excellent characteristics, such as high precision, easy operation, long service life, etc. In production processing, it can be used for rapid positioning and clamping. Because of its high precision, it can quickly locate the workpiece at a certain position, which plays an important role in the smooth production of products, and also improves production efficiency.

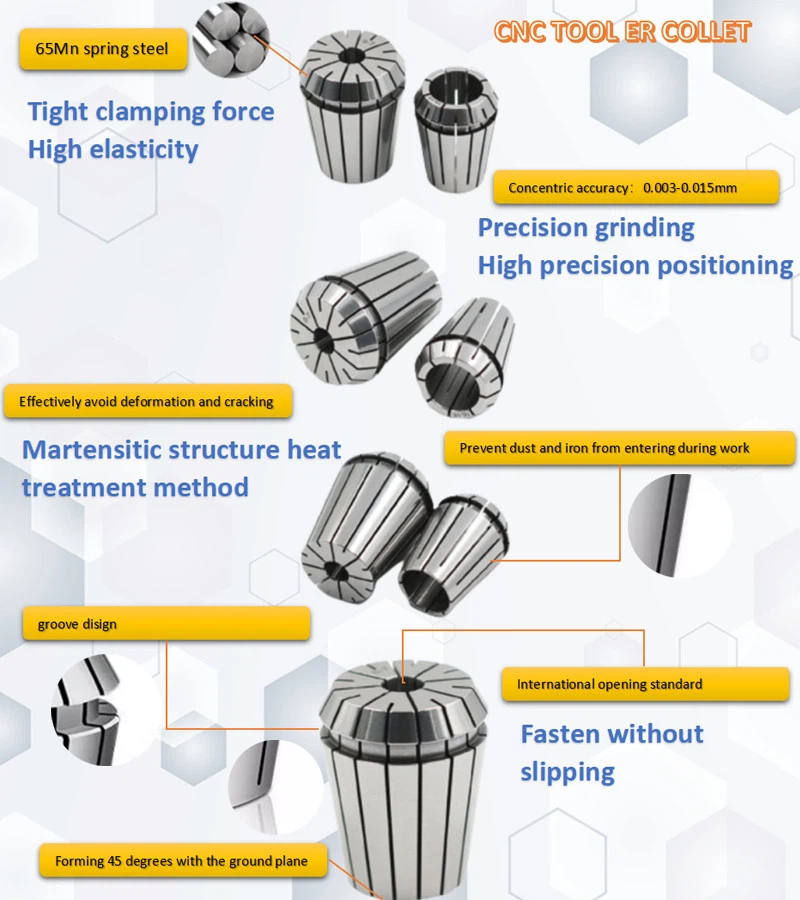

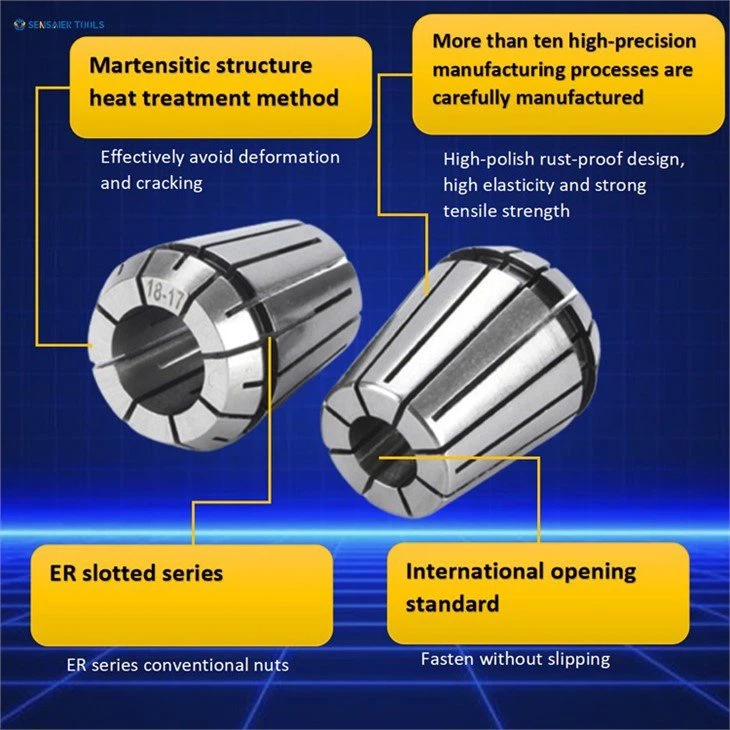

Features

High Accuracy Spring Collets are made of 65 manganese, which has good hardenability, wear resistance, and heat resistance.

The deformation and cracking can be effectively avoided by preventing martensite after heat treatment.

Good elasticity makes it stable at high speed.

It is widely used in CNC lathes, engraving machines, etc. It is an indispensable tool for milling, drilling, tapping, and other processing means.

Details

Name: High Accuracy Spring Collets

Model: ER25

Material: 65Mn

Hardness:HRC44-48

Accuracy:0.003mm,0.005mm,0.008mm,0.015mm

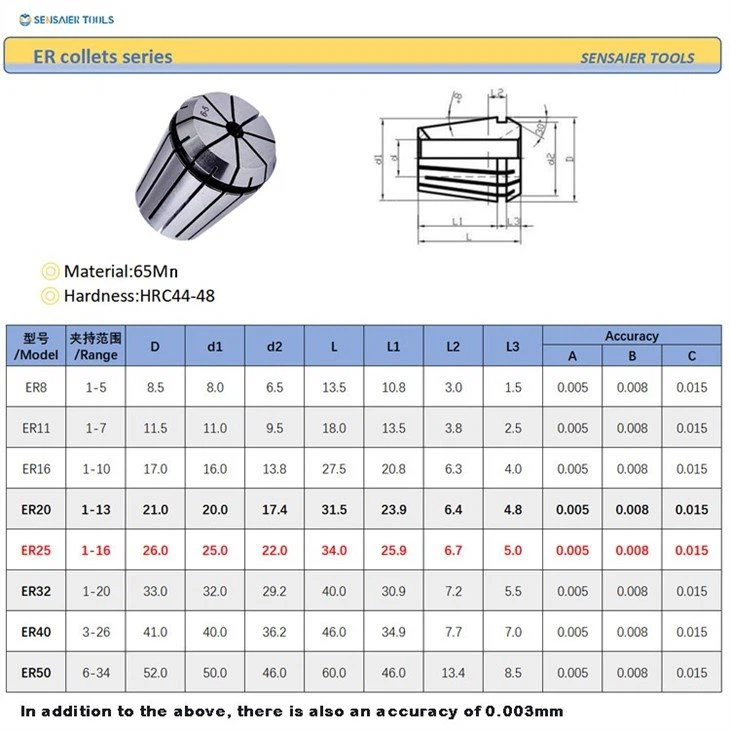

Technical Parameters

● Installation method

1. Install the groove of the spring clamp to the eccentric circle of the nut, and push it as indicated until you hear a click.

2. Install the spring collet on the tool.

3. Tighten the nut with a wrench.

● Disassembly Instructions

Unscrew the nut from the handle, pull out the tool, and press it down at the bottom of the eccentric circle to separate the collet from the nut.

Note: Do not use brute force.

● Eccentric circle

The installation and removal must be started from the position with small space of the eccentric circle.
