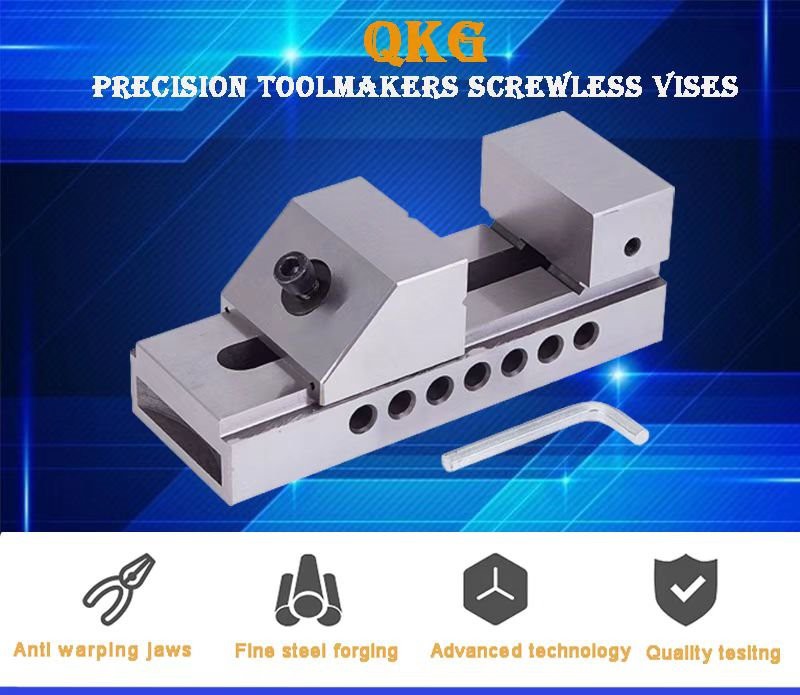

Precision Toolmakers Screwless Vises
Type: Precision CNC Milling Machine QKG Tool Vise
Name: QKG Precision Tool Vise
Model: QKG25/36/38/50/63/73/80/88/100/125/150/150A/150B
Material:20CrMnTi alloy steel
Hardness:HRC58-62
Accuracy:0.005mm
Parallelism:0.005mm/100mm
Squareness: 0.005mm
- Product Introduction
Description
When machining the workpiece, it is necessary to fix the workpiece first. Otherwise, the workpiece may roll back and forth on the workbench, which is not conducive to processing and may also cause potential safety hazards. These Precision Toolmakers Screwless Vises are used to fix workpieces of various specifications. We use high-quality steel to forge these products, supplemented by quenching treatment. Therefore, they have excellent hardness, rigidity, rust resistance and corrosion resistance. We believe they can be your good helpers.
Features
The Precision Toolmakers Screwless Vises are made of high-quality alloy steel, so it has superior hardness and stability. The threads on the whole screw are very tight, which can play a good role in fastening. The V-shaped deep groove jaw can effectively increase the friction to prevent the workpiece from falling. The perpendicularity and parallelism are about ± 0.005mm. We use advanced machinery and equipment to manufacture this product to ensure its accuracy.
Details
Type: Precision CNC Milling Machine QKG Tool Vise
Name: QKG Precision Tool Vise
Model: QKG25/36/38/50/63/73/80/88/100/125/150/150A/150B
Material:20CrMnTi alloy steel
Hardness:HRC58-62
Accuracy:0.005mm
Parallelism:0.005mm/100mm
Squareness: 0.005mm
Usage:Precision tool maker vise,It is used for machine tools such as surface grinder, milling machine, EDM and wire cutting to complete the processing of angle plane grooves and plane inclined holes, and can be used for the measurement of various angle parts. It can maintain high precision when working horizontally, vertically and horizontally.

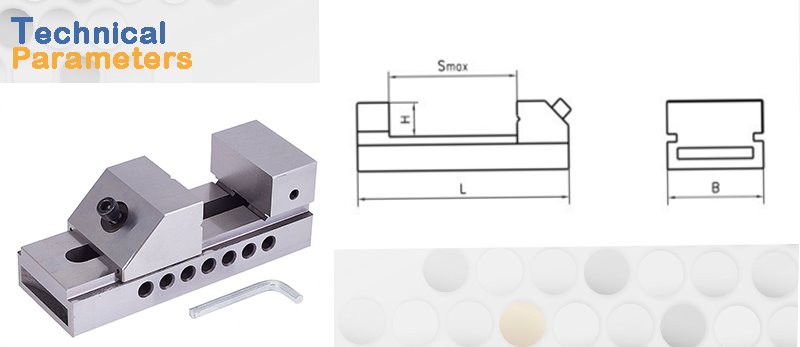

Model No. | B(mm) | H(mm) | Smax(mm) | L(mm) | N.W(kg) |
QKG25 | 26 | 9.15 | 22 | 65.4 | 0.5 |
QKG36 | 36 | 20 | 40 | 100 | 1.2 |
QKG38 | 38 | 20 | 44 | 105 | 1.3 |
QKG50 | 50 | 25 | 65 | 140 | 2.0 |
QKG63 | 63 | 32 | 85 | 175 | 3.0 |
QKG73 | 73 | 35 | 100 | 190 | 4.1 |
QKG80 | 80 | 40 | 100 | 200 | 5.5 |
QKG88 | 88 | 40 | 125 | 235 | 7.3 |
QKG100 | 100 | 45 | 125 | 245 | 10.0 |
QKG125 | 125 | 50 | 160 | 285 | 18.0 |
QKG150 | 150 | 50 | 200 | 330 | 21.5 |
QKG150A | 150 | 50 | 250 | 380 | 23.0 |
QKG150B | 150 | 50 | 300 | 430 | 24.0 |

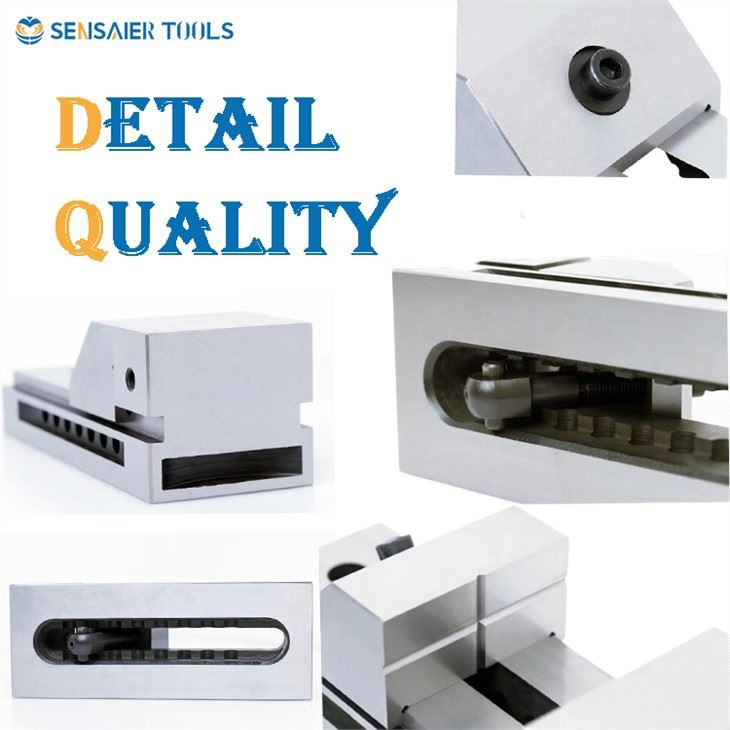

Focus on product details and create industry boutiques

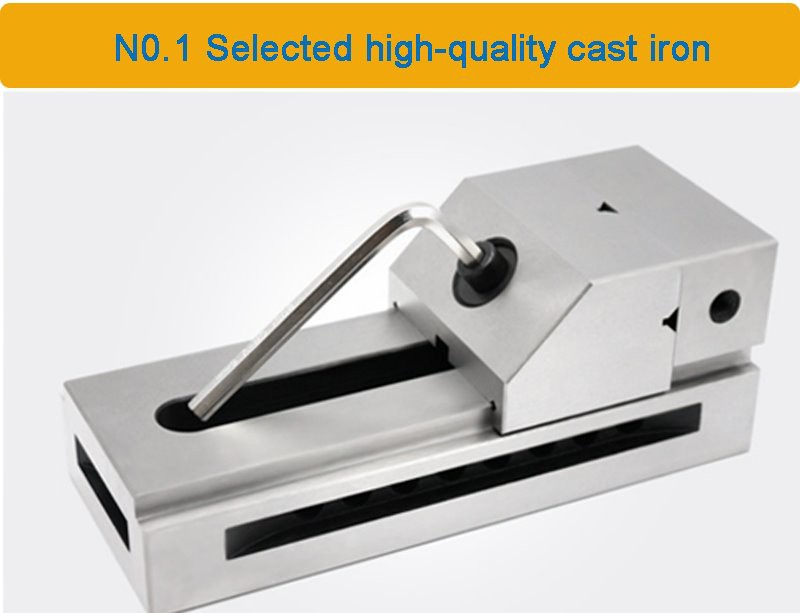

N0.1 Selected high-quality cast iron
Made of high-quality cast iron, high tensile strength, more durable, and the surface is finely ground

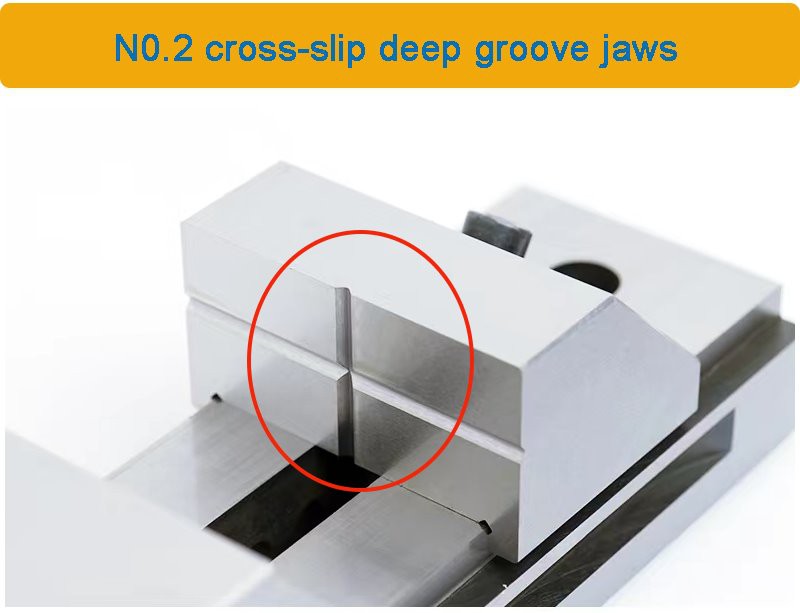

N0.2 cross-slip deep groove jaws
The jaws are designed with a cross depth, which is more stable when clamping the workpiece

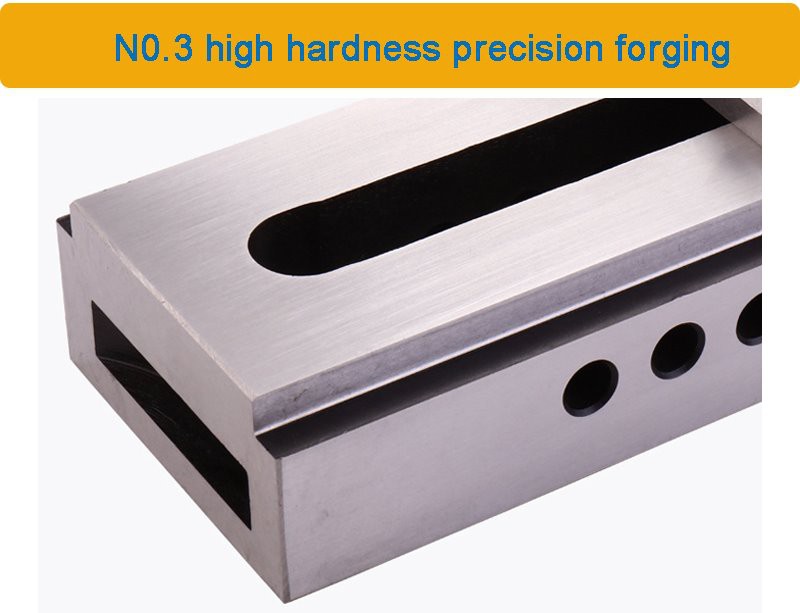

N0.3 high hardness precision forging
Working face hardness HRC is obtained by using 150KG load and diamond cone indenter
N0.4 strong and durable spherical washer
Made of high-quality pure steel forging, it can be used in a variety of ways, and can be placed horizontally, vertically, sideways, and horizontally.

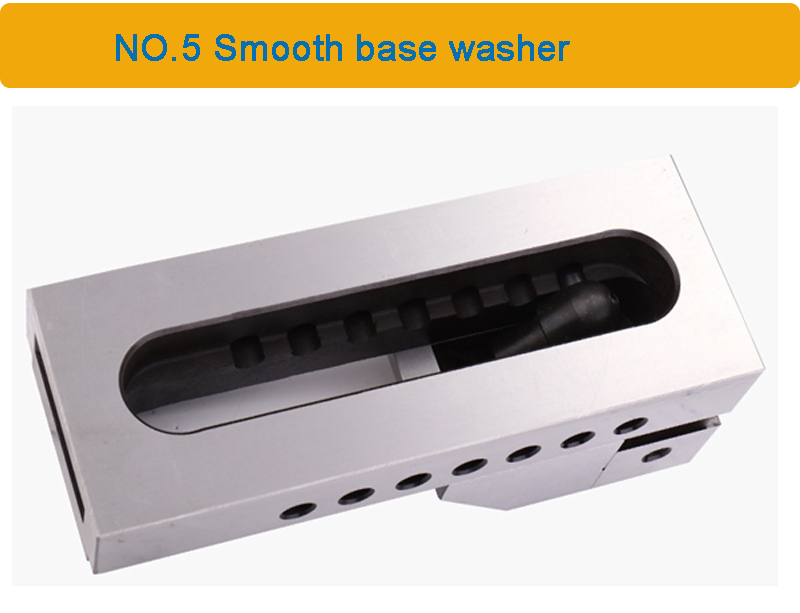

NO.5 Smooth base
The bottom of the inlay is smooth and polished, flat and precise, and will not shake during processing
