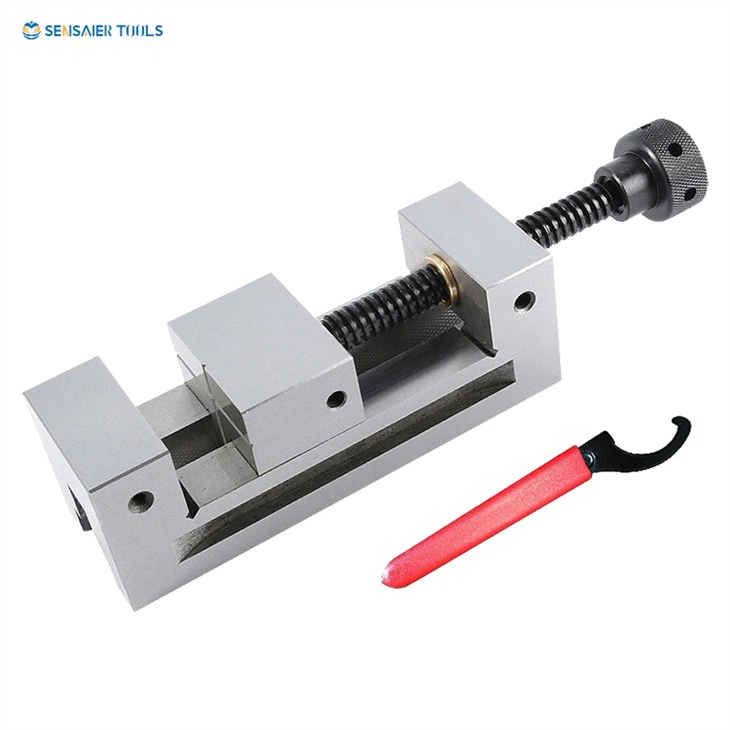

QGG Precision Tool Vise
Type: Precision machine vise
Name: Precision machine tool vise QGG vise
Model: QGG38/50/60/63/73/80/88/100/125/150/200
Material:20CrMnTi
- Product Introduction
Product description
When you first need to process small parts, you will often find that two hands cannot fix the parts while processing them. At this time, you need to use this QGG Precision Tool Vise. This product can well fix the workpiece, so that you can better process. The product is made of high-quality steel, which has very good deformation resistance and will not bend even if it is used for a long time. Its base is very hard, which can ensure good stability to avoid overturning during processing. In addition to traditional usage, you can also use it vertically.
Features
1. The QGG Precision Tool Vise is forged from high-quality alloy steel and quenched at high temperature, so its hardness and rigidity are very good.
2. Tighten the clamp body to fix the workpiece well. You don't have to worry about the sudden loosening of the clamp body which will cause the workpiece to fall.
3. You can easily and quickly rotate the handle to fix the workpiece.
4. It can be used to fix workpieces of various shapes and specifications. The workpiece will not be damaged during fixation.
Product introduction
Type: Precision machine vise
Name: Precision machine tool vise QGG vise
Model: QGG38/50/60/63/73/80/88/100/125/150/200
Material:20CrMnTi
Hardness:HRC58-62
Accuracy:0.005mm
Parallelism:0.005mm/100mm
Squareness: 0.005mm
Usage:CNC machine tools
Drive mode:manual
Packing:QGG Precision Tool Vise with paper box or wooden case
Model No. | L(mm) | A(mm) | B(mm) | H(mm) | E(mm) | F(mm) | G(mm) | Smax(mm) | N.W(kg) |
QGG50 | 215 | 155 | 50 | 50 | 25 | 25 | 0-65 | 65 | 3.0 |
QGG63 | 250 | 190 | 63 | 65 | 32 | 30 | 0-85 | 85 | 3.9 |
QGG73 | 280 | 210 | 73 | 74 | 35 | 32 | 0-100 | 100 | 5.1 |
QGG80 | 290 | 220 | 80 | 84 | 40 | 34 | 0-100 | 100 | 6.5 |
QGG88 | 320 | 250 | 88 | 88 | 40 | 35 | 0-125 | 125 | 10.9 |
QGG100 | 330 | 260 | 100 | 95 | 45 | 38 | 0-125 | 125 | 13.1 |
QGG125 | 345 | 300 | 125 | 110 | 50 | 40 | 0-160 | 160 | 19.6 |
QGG150 | 365 | 315 | 150 | 110 | 50 | 40 | 0-175 | 175 | 23.8 |
QGG125A | 400 | 350 | 125 | 110 | 50 | 40 | 0-210 | 210 | 23.0 |
V-shaped deep notch for more stable clamping
Adopt cross V-shaped mouth design, increase clamping friction and stability, not easy to slip off.
