CNC Milling Machine Tool Vise GT Modular Vise
Type: precision modular vises
Name: Gt Series Precision Modular Vise
Model:GT100/125/150/175/200/300mm
Material:20CrMnTi alloy steel
- Product Introduction
Product Introduction
Whether the workpiece is processed with a grinder or a milling machine, the workpiece to be processed must be well fixed first, and this CNC Milling Machine Tool Vise GT Modular Vise is used for this purpose. This product is made of 20CrMnTi alloy steel and has been carburized and quenched, so it has high hardness and high stability. This product is suitable for grinding machines, milling machines, etc. High hardness and high precision enable the product to hold the workpiece well to avoid accidents.
Features
Carburizing and quenching make this CNC Milling Machine Tool Vise GT Modular Vise obtain higher toughness, surface hardness and machining accuracy. The surface of the guide rail is precisely ground, so it is very smooth. The surface is sprayed with plastic, which not only increases the aesthetics but also improves the rust resistance. Its base is very hard, which can ensure good stability to avoid overturning during processing. In addition to traditional usage, you can also use it vertically.
Product Description:
Type: precision modular vises
Name: Gt Series Precision Modular Vise
Model:GT100/125/150/175/200/300mm
Material:20CrMnTi alloy steel
Hardness:HRC58-62
Accuracy:0.005mm
Parallelism:0.005mm/100mm
Squareness: 0.005mm
Usage:CNC Milling Grinding machine, drilling machines, grinders, used to clamp the workpiece machine accessories.
Technical Parameters
Model No. | B(mm) | H(mm) | Smax(mm) | L(mm) | Clamping force (kgs) |
GT100 | 100 | 30 | 100 | 270 | 3000 |
GT125 | 125 | 40 | 150 | 345 | 3000 |
GT150A | 150 | 50 | 200 | 420 | 5000 |
GT150B | 150 | 50 | 300 | 520 | 5000 |
GT175A | 175 | 60 | 200 | 455 | 6000 |
GT175B | 175 | 60 | 300 | 555 | 6000 |
GT175C | 175 | 60 | 400 | 655 | 6000 |
GT175D | 175 | 60 | 500 | 755 | 6000 |
GT175E | 175 | 60 | 600 | 855 | 6000 |
GT200A | 200 | 65 | 200 | 495 | 10000 |
GT200B | 200 | 65 | 300 | 595 | 10000 |
GT200C | 200 | 65 | 400 | 695 | 10000 |
GR200D | 200 | 65 | 500 | 795 | 10000 |
GT200E | 200 | 65 | 600 | 895 | 10000 |
GT300A | 300 | 80 | 200 | 535 | 12000 |
GT300B | 300 | 80 | 300 | 635 | 12000 |
GT300C | 300 | 80 | 400 | 735 | 12000 |
GT300D | 300 | 80 | 500 | 835 | 12000 |
GT300E | 300 | 80 | 600 | 935 | 12000 |
GT300F | 300 | 80 | 700 | 1035 | 12000 |
GR300G | 300 | 80 | 800 | 1135 | 12000 |

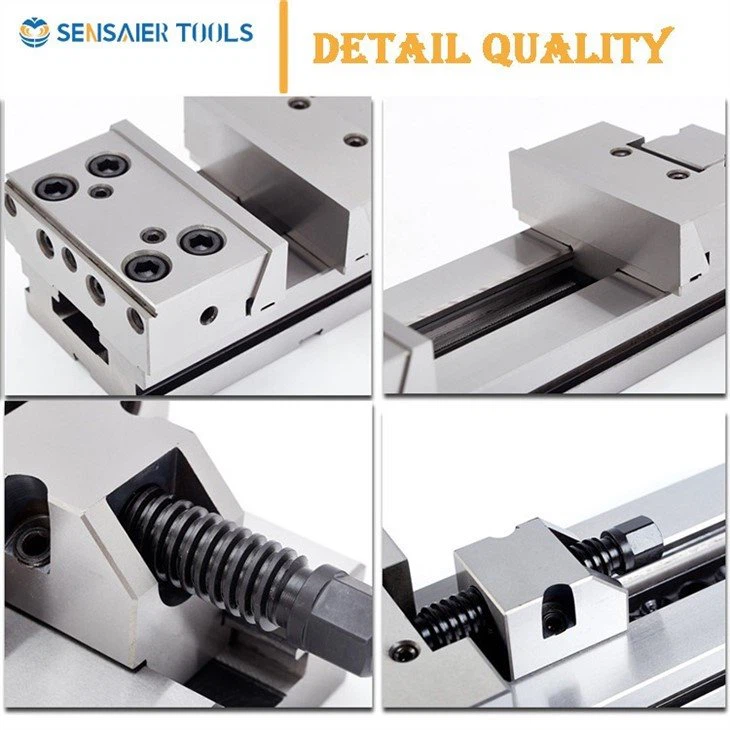

Product Details
①Hardened lead screw ②High carburized double top wire ③Polished stand
④Precision jaws ⑤Platen fixing slot ⑥High precision moving block
Product Accessories
Common problem
1. Can we get some samples? Are there any fees?
Yes, appropriate material fee, you need to pay for shipping.
2. How do we get a quote?
Contact us to provide specifications: such as materials, specifications, quantities, precision requirements, etc.
3. What are the terms of trade and payment?
Amount less than $1000, 100% paid before production, more than $1000 can be negotiated!T/T, Western Union, PAYPAL, etc.
4. Can I make new samples with my design for confirmation?
Yes. The sample fee refers to the set-up fee for the production line, and a small amount is recommended to be used directly for production. For large quantities, we recommend proofing first, and the sample fee can be refunded.
Quality Control
We have QC staff staying on the production line to check. All products must be inspected before delivery. We conduct online inspections and final inspections.
1. All raw materials are checked after they arrive at our factory.
2. Check all parts and signs and all details during production.
3. Check all packaging details during production.
4. All production quality and packaging are checked in final inspection after completion.
