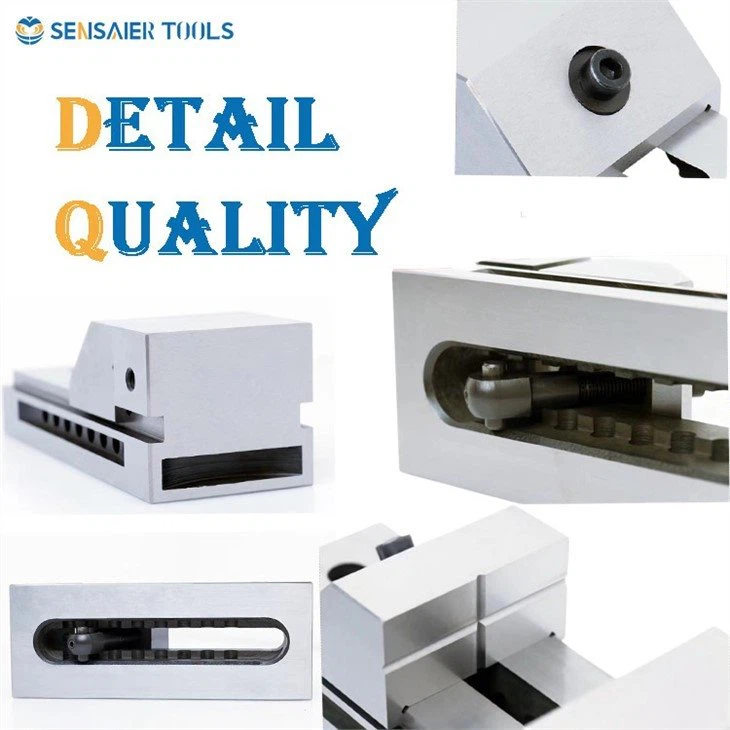

QKG Precision Tool Vise
Type: Milling machine vise
Name: Grinding machine vise QKG series
Model: QKG25/36/38/50/63/73/80/88/100/125/150/150A/150B
Material:20CrMnTi alloy steel
- Product Introduction
Product Description
The QKG Precision Tool Vise can well fix the workpiece to be processed. On the one hand, fixing the workpiece can ensure the safety of users, so as to prevent the workpiece from falling and hitting people. On the other hand, fixing the workpiece can enable users to better perform various operations to complete close machining. This product is very important no matter what. The product is made of high-quality alloy steel, so it has superior hardness and stability.
Features
The QKG Precision Tool Vise is forged from high-quality alloy steel, so it has excellent performance in hardness, corrosion resistance and wear resistance. We enlarged and thickened the base to make the fixation process more stable. The surface is sprayed with plastic, which not only increases the aesthetics but also improves the rust resistance. It can be used to fix workpieces of various shapes and specifications. The workpiece will not be damaged during fixation.
Product Introduction:
Type: Milling machine vise
Name: Grinding machine vise QKG series
Model: QKG25/36/38/50/63/73/80/88/100/125/150/150A/150B
Material:20CrMnTi alloy steel
Hardness:HRC58-62
Accuracy:0.005mm
Parallelism:0.005mm/100mm
Squareness: 0.005mm
Usage:Precision grinding,milling machines,EDM and wire cutting machine
Features:Quick clamping, flexible operation, light and durable
Packing: paper box or wooden case
Delivery :Milling machine tool vise for standard sizedelivery short-time
Model No. | B(mm) | H(mm) | Smax(mm) | L(mm) | N.W(kg) |
QKG25 | 26 | 9.15 | 22 | 65.4 | 0.5 |
QKG36 | 36 | 20 | 40 | 100 | 1.2 |
QKG38 | 38 | 20 | 44 | 105 | 1.3 |
QKG50 | 50 | 25 | 65 | 140 | 2.0 |
QKG63 | 63 | 32 | 85 | 175 | 3.0 |
QKG73 | 73 | 35 | 100 | 190 | 4.1 |
QKG80 | 80 | 40 | 100 | 200 | 5.5 |
QKG88 | 88 | 40 | 125 | 235 | 7.3 |
QKG100 | 100 | 45 | 125 | 245 | 10.0 |
QKG125 | 125 | 50 | 160 | 285 | 18.0 |
QKG150 | 150 | 50 | 200 | 330 | 21.5 |
QKG150A | 150 | 50 | 250 | 380 | 23.0 |
QKG150B | 150 | 50 | 300 | 430 | 24.0 |
