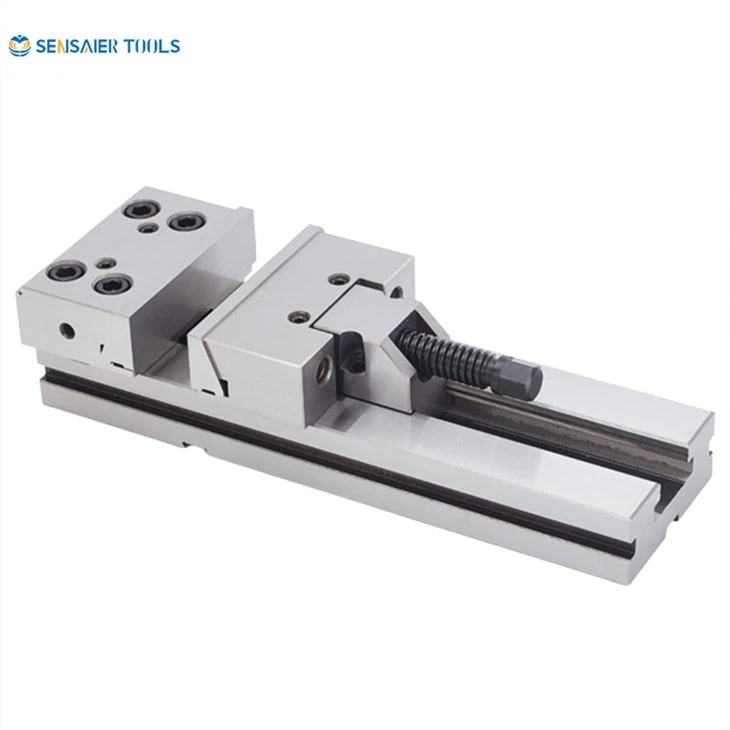

GT200B Precision Modular Vice
Name: Modular Precision Machine Vice
Model:GT100/125/150/175/200/300mm
Material:20CrMnTi alloy steel
Hardness: HRC58-62
Accuracy:0.005mm
Parallelism:0.005mm/100mm
Squareness: 0.005mm
- Product Introduction
Product Description:
Name: Modular Precision Machine Vice
Model:GT100/125/150/175/200/300mm
Material:20CrMnTi alloy steel
Hardness: HRC58-62
Accuracy:0.005mm
Parallelism:0.005mm/100mm
Squareness: 0.005mm
Usage: CNC Milling Grinding machine, drilling machines, grinders, used to clamp the workpiece machine accessories.
Features: GT precision modular vise features interchangeable bases, fixed/moving jaws, quick clamping, and easy handling.
GT precision modular vises are used for milling machines, drilling machines, and grinding machines . It is a random accessory for the milling machines and drilling machines. It is fixed on the table of the machine tool and is used to clamp the workpiece for cutting.

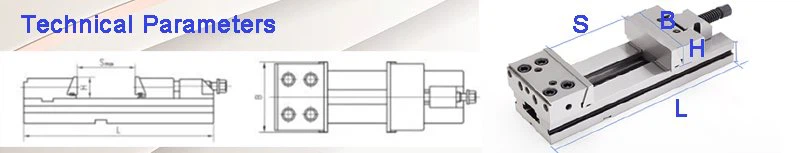

Model No. | B(mm) | H(mm) | Smax(mm) | L(mm) | Clamping force (kgs) |
GT100 | 100 | 30 | 100 | 270 | 3000 |
GT125 | 125 | 40 | 150 | 345 | 3000 |
GT150A | 150 | 50 | 200 | 420 | 5000 |
GT150B | 150 | 50 | 300 | 520 | 5000 |
GT175A | 175 | 60 | 200 | 455 | 6000 |
GT175B | 175 | 60 | 300 | 555 | 6000 |
GT175C | 175 | 60 | 400 | 655 | 6000 |
GT175D | 175 | 60 | 500 | 755 | 6000 |
GT175E | 175 | 60 | 600 | 855 | 6000 |
GT200A | 200 | 65 | 200 | 495 | 10000 |
GT200B | 200 | 65 | 300 | 595 | 10000 |
GT200C | 200 | 65 | 400 | 695 | 10000 |
GR200D | 200 | 65 | 500 | 795 | 10000 |
GT200E | 200 | 65 | 600 | 895 | 10000 |
GT300A | 300 | 80 | 200 | 535 | 12000 |
GT300B | 300 | 80 | 300 | 635 | 12000 |
GT300C | 300 | 80 | 400 | 735 | 12000 |
GT300D | 300 | 80 | 500 | 835 | 12000 |
GT300E | 300 | 80 | 600 | 935 | 12000 |
GT300F | 300 | 80 | 700 | 1035 | 12000 |
GR300G | 300 | 80 | 800 | 1135 | 12000 |

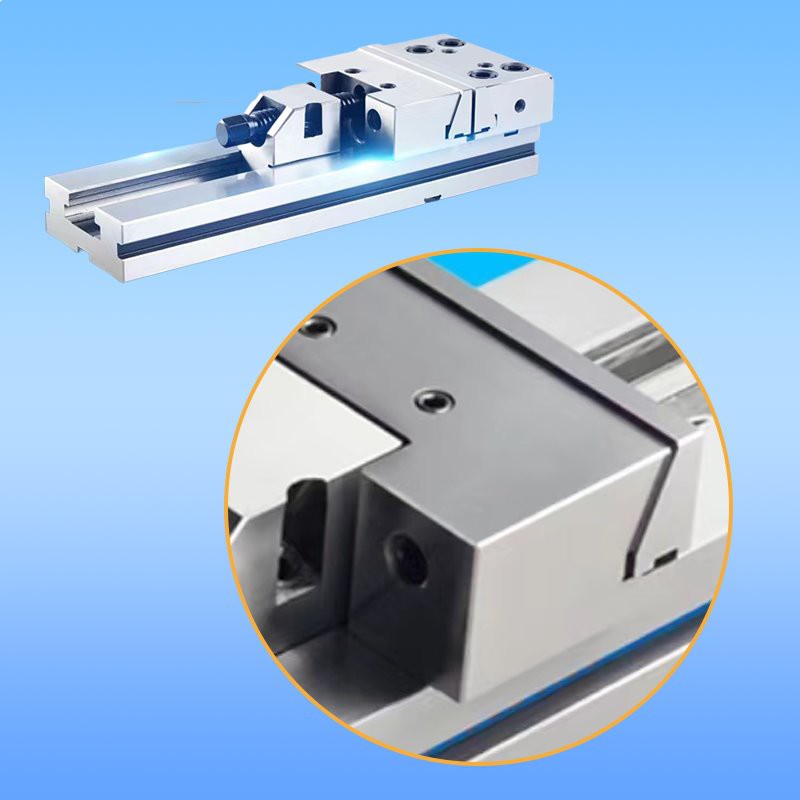

●Durable, high-precision grinding anti-warping jaws ---
fine steel jaws, the hardness is as high as 58-62, and the depth of the jaws is designed to effectively
increase the force when clamping, and the operation is stable.
●Smooth and smooth, fine grinding on the rail surface ---
fine grinding, high precision, movable jaws, the distance from the rail surface is not more
than 0.1mm.
●High-temperature quenching, carburizing, and hardening screw---
screw quenching is harder and easy to operate, and the clamping workpiece is stable and
does not shake.
●Polishing treatment, selected high-quality alloy steel ---
selected 20CrMnTi, polished treatment, the whole is made of high-quality alloy steel forged by
high-temperature carburizing and quenching and has a long service life.
●Product accessories
●Packing
